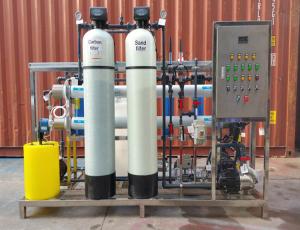

4.6KW Seawater RO Plant , 1NTU Water Desalination System For Boats

Name: 46KW Seawater RO Plant 1NTU Water Desalination System For Boats
Brand: JISHUI
Price: 4000 USD

Quality 4.6KW Seawater RO Plant , 1NTU Water Desalination System For Boats for sale

Place of Origin : Guangdong, China

Brand Name : JISHUI

Packaging Details : Plywood

Price : USD4000-USD6000

Applicable Industries : Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Food & Beverage Shops

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : None

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 2 years

Core Components : Pressure vessel, Pump, Bearing, Engine, PLC

Material : plywood casr, Stainless steel

Weight : 250kg

Size : 1.1*1.1*1.6(m), 1.2*1.2*1.65(m)

Power : 3kw, 4.6KW

After-sales Service Provided : Video technical support, Field installation, commissioning and training, Online support

Warranty : 2 years

Productivity : 500L/Hour

Type : water desalination machine

Operation temperature : 1~45 degree

Capacity : Customized from 250 L

Control method : Full control

Operation pressure : 3 bar~60 bar

Certificate : ISO quality, Key parts CE

Apply filed : boat/vessel/ship

Contact Now

Seawater sea water desalination machine for home boat

Please Attention

Seawater sea water desalination machine for home boat

HY FACTORY OFFER YOU :

1: FACTORY DIRECT PRICE.

2: NICE QUALITY.

3: ONLINE PAYMENT.

4: SUPPORT REFUND AFTER YOUR INSTALLED THE PLANT IF THERE ARE ANY PROBLME.

5: AFTER SALES SERVICES 24/7

6. Letters patent

7. ENGINNER CAN BE OVERSEA INSTALLNATION

We have 2 factories +300 workers+ Qualified engineer+ Engineer Overseas service

Seawater sea water desalination machine Process function description

1. Water desalination machine uses automatic control and semi-control .

Pretreatment parts can adopt fiber glass or stainless steel material.

2.water desalination machines protected when no power, poor power, larger electrical current, leakage, short circuit.

3. seawater desalination machine is compact, easy installation.

4. Desalination machine equipped with PLC and touch screen control and remote login.

5. seawater desalination machine for boat produces as per ISO and SGS standard and main parts accessories have obtained CE certification.

Compact sea water desalination device:

HY-SWRO-5000LPD
Flow rate	5000L/day	Recovery rate	20%
Applicable power	380V/50HZ 3 phase	Rated power	4.6KW
Feedwater TDS	<45000ppm	freshwater TDS	<600ppm
Working pressure	<6Mpa	operating temperature	5-45℃
Feedwater residual chlorine	<0.1ppm	Feedwater SDI	<5
Feedwater turbidity	<1NTU	Feedwater PH value	3-10
Equipment specification	1.2X1.2X1.65(m)	Net weight	240Kg
Packing specification(Plywood)	1.3X1.3X1.75(cm)	Gross weight	300Kg

Process Description

Process Flow of ro system water desalination machine

Sea water tank →Feed water pump→Dosing system→ Muti-media filter→ active carbon filter→Antiscalant/inhibitor dosing→Cartridge/Security/Micro filter→ Plug pump→ Reverse Osmosis system→ RO purified tank →Use point

Process Introduction of RO system water desalination equipment

NOS.	Items	Information
1. Pre-treatment	Sea water tank	Store sea water, let it have a sedimentation before entering the plant.
	Feed water pump	Provide power for pretreatment part.
	Dosing system	And add the flocculant.
	Quartz sand	quartz sand, used to remove iron,colloid,silt etc, to make effluent water cleaning.
	Active carbon filter	Remove color, free chloride, organic matter, harmful matter, etc.
Dosing system	Detail dosing system will be decided by: source quality & treated water quality requirements. Normal including: inhibitor dosing, PH dosing, reducing dosing, germicide dosing.
2. RO plug system	Security filter	Prevent large particles, iron, dust, SS matter, impurity into the RO membrane.
	Plung pump	Provide power for RO.
	RO membrane	Removes: lead, cooper, barium, chromium, mercury, sodium, cadmium, fluoride, nitrite, nitrate, and selenium.

3. Control system	Control panel	Assembled by factory. Auto type.
	PLC mode	Adopt Mitsubishi from Japan, good quality.
	Touch screen	Make use of WeiNview from Taiwang. Convenience for user to operate.
	Electricity components	Schneider/Omron from German.
	Plant skid	Anti corrosion paited.

We are the right supplier. You know why?

Our Services

24h after-sales service online

12 months warranty and free maintenace cost whole life free technical support

Track the order until you get the goods

We can provide oversea service(Go to on site for installation and commission)
